DHM54T31-TP
410-435W
OUR Product

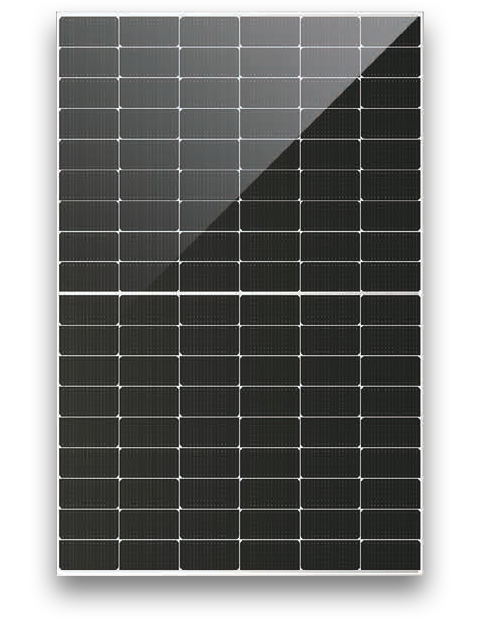

DHM54T31-TP
410-435W
High efficiency N-type module
30 YEAR LINEARITY POWER OUTPUT WARRANTY
25 YEARS OF EXCELLENT PRODUCTS MATERIAL AND PROCESS WARRANTY
ISO 9001: 2008 ISO 14001 :2004
ISO 45001 :2018 TUV CE cac
IEC 61215, IEC 61730
410-435W
TECHNICAL DETAILS
MECHANICAL PROPERTIES
Cell Type
Monocrystalline-N- type
Component Weight
21.5kg
Component Size
1722x1134x30mm
Number of Cells
108(6x18)
Cable Cross-sectional Area
4mm•
Junction Box
IP68, 3 diodes
Connector
MC4-EVO2
Packaging information
36 pieces/pallet
936 pieces /40 'container
WORKING PARAMETERS
Maximum System Voltage
1500V (TUV)
Operating Temperature
-40°c-+ 55°c
Maximum Fuse Current Rating
25A
Application Level
Class A
410-435W
ELECTRICAL PERFORMANCE PARAMETERS UNDER STC
| Model | DHM54T31-410/TP | DHM54T31-415/TP | DHM54T31-420/TP | DHM54T31-425/TP | DHM54T31-430/TP | DHM54T31-435/TP |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 410 | 415 | 420 | 425 | 430 | 435 |
| Voltage at maximum Power point (Vmp) [V] | 31.65 | 31.85 | 32.05 | 32.25 | 32.45 | 32.65 |
| Current at maximum Power point (Imp) [A] | 12.95 | 13.03 | 13.10 | 13.18 | 13.25 | 13.32 |
| Open circuit Voltage (Voe) [V] | 37.53 | 37.78 | 38.03 | 38.28 | 38.53 | 38.78 |
| Short circuit Current (lsc) [A] | 13.90 | 13.94 | 13.99 | 14.04 | 14.09 | 14.19 |
| Component Efficiency [%] | 21.00% | 21.25% | 21.51% | 21.76% | 22.02% | 22.26% |
| Power Tolerance | 0-+5 | |||||
| Temperature Coefficient of Pmax | -0.29°/o/°C | |||||
| Temperature Coeflcient of Voe | -0.25%/°C | |||||
| Temperature Coefficient of lsc | 0.044%/°C | |||||
| Standard test environment | lrradiance 1000W/m', cell temperature 25°C, spectrum AM 1.5 | |||||
